how to get a sql console on an android sqlite database

3 minute read

This is a short post on all the options I’ve been through to get a (simple) sql console for Android development. And it saves time when you can pick the right tool straight away :).
Update 11-05-2019: database export is possible on AVD devices too. Added a fix for when the exported database file is empty (call close() to let SQLite write its journal to disk).

In descending order of goodness:

1) adb exec-out run-as nl.eimertvink.smv cat databases/smv_db > smv_db_copy

This is the best and fastest way from stackoverflow. You’ll need your phone connected and a physical phone (with debugging enabled) or an AVD device (AVD: debugging is enabled by default).

A script that simplifies the copy action is humpty-dumpty-android. I’m not going to describe that tool here.
This is the basic way to get the database on your local machine:

  1. Copy db to machine:
    adb exec-out run-as nl.eimertvink.smv cat databases/smv_db > smv_db_copy

  2. View tables:
    eimert@EIM SMV $ sqlite3 smv_db_copy
    (... omitted ...)
    sqlite> .tables
    sqlite>


No tables found; empty database file. Read on how to resolve this.

What to do when the database file is empty

You’ll need to call close() on the database instance, to let SQLite write its journal to the database file. For that we’ll create a button that calls close();.

Create a (hidden) button for db.close()

Some Java code that handles the button click:

public class MainActivity extends AppCompatActivity {
        // ... omitted ...

        // Called when the user selects a contextual menu item
        @Override
        public boolean onActionItemClicked(ActionMode mode, MenuItem item) {
            switch (item.getItemId()) {
                case R.id.action_close_db:
                    Log.d(TAG, getString(R.string.action_close_db));
                    if (db == null) {
                        Log.e(TAG, "Unable to re-open database instance " + db);
                        Toast.makeText(MainActivity.this, getString(R.string.action_opened_db), Toast.LENGTH_LONG).show();
                    } else if (AppDatabase.isOpen(db)) {
                        Log.d(TAG, "Closing database instance " + db);
                        AppDatabase.close(db);
                        db = null;
                        Toast.makeText(MainActivity.this, getString(R.string.action_closed_db), Toast.LENGTH_SHORT).show();
                    }
                    mode.finish(); // Action picked, so close the contextual menu
                    return true;
                default:
                    return false;
            }
        }
        // ... omitted ...
}

After invoking the button, the db connection cannot be re-opened. The isOpen(db) and close(db) calls refers to these static methods in the AppDatabase class:

public abstract class AppDatabase extends RoomDatabase {
    // ... omitted ...
    public static boolean isOpen(AppDatabase db) {
        return db.isOpen();
    }

    public static void close(AppDatabase db) {
        db.close(); // calls close() on RoomDatabase instance.
    }
}

See this blogpost for more details on how I’ve setup Android Room.

Test the db.close() button

Launch the emulator and start an adb shell:

adb shell

Execute “run-as your.app.realm”:

generic_x86:/ $ run-as nl.eimertvink.smv
generic_x86:/data/data/nl.eimertvink.smv $

Check the database (called smv_db) file size. In this example the actual db has no tables (Size: 4096).

generic_x86:/data/data/nl.eimertvink.smv $ stat databases/smv_db                                                          <
  File: `databases/smv_db'
  Size: 4096	 Blocks: 8	 IO Blocks: 512	regular file
Device: fc00h/64512d	 Inode: 123232	 Links: 1
Access: (660/-rw-rw----)	Uid: (10088/  u0_a88)	Gid: (10088/  u0_a88)
Access: 2019-05-11 12:37:50.711995122
Modify: 2019-05-11 12:37:50.711995122
Change: 2019-05-11 12:56:09.251990576

Click on the button that is calling AppDatabase.close() in the app:

via GIPHY

Again check the database file size. Notice the file has increased in size (from 4096 to to 40960).

generic_x86:/data/data/nl.eimertvink.smv $ stat databases/smv_db                                                          <
  File: `databases/smv_db'
  Size: 40960	 Blocks: 80	 IO Blocks: 512	regular file
Device: fc00h/64512d	 Inode: 123232	 Links: 1
Access: (660/-rw-rw----)	Uid: (10088/  u0_a88)	Gid: (10088/  u0_a88)
Access: 2019-05-11 12:37:50.711995122
Modify: 2019-05-11 12:57:09.121990328
Change: 2019-05-11 12:57:09.121990328

Let’s copy the filled database file to our local machine.

  1. Copy db to machine:
    adb exec-out run-as nl.eimertvink.smv cat databases/smv_db > smv_db_copy

  2. Happy querying:
    eimert@EIM SMV $ sqlite3 smv_db_copy
    (... omitted ...)
    sqlite> .tables
    Question           ScoreDetail        android_metadata
    Rating             TestSession        room_master_table
    sqlite> .quit

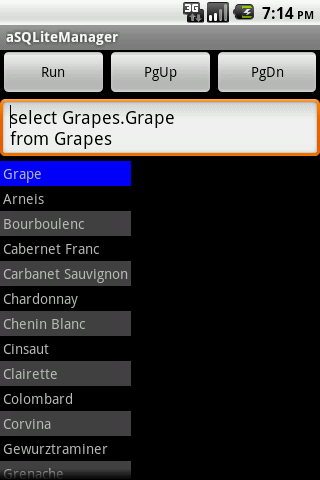

2) aSQLiteManager

This app gives a SQL console on your phone. You can access the database of other apps when your phone is rooted.

source

3) Android Debug Database

You’ll get a nice web gui on localhost:8080. But in my case I had quite some trouble with the tool (URL not loading). Running adb forward tcp:8080 tcp:8080 solved that issue only a few times.

Conclusion

I’d go for adb exec-out run-as because it is simple and just works.
